Aluminum PCBs
- 铝PCB有一层或多层丝印， 阻焊层， 和铜涂层.
- 铝PCB的基材带有常规的FR4和铝芯.
- 此外， 铝制 PCB 通常是严格耐受性和高功率设备的理想解决方案.
WHAT ARE ALUMINUM PCBS?
They are PCBs that have a layer or layers of silkscreen, solder mask, and copper coat. Also, these aluminum PCBs come with metal substrates instead of a plastic substrate or fiberglass material.
The base material of aluminum PCB comes with the regular FR4 and an aluminum core. Also, aluminum PCBs are usually an ideal solution for tight-tolerant and high-power devices.
Hence, the PCB comes with a thermal layer that is clad and efficiently dispels heat. In summary, aluminum PCB’s presence helps to cool down components and increases electronic devices’ performance.
WHY ALUMINUM IS A GREAT UNIT FOR CIRCUIT BOARDS?
The reason is simple!
Aluminum is ideal for dissipating heat from essential electronic components, and it helps to minimize any detrimental effects that may occur on the PCB.
Also, aluminum material offers great durability and strength to electronic appliances, which fiberglass and ceramic bases cannot handle.
THE PERFORMANCE SCOPE OF ALUMINUM PCBS
Aluminum PCBs possess various performance capacities, which makes them one of the best types of PCBs.
Thermal Dissipation
- Normally, PCB substrates like CEM3 FR4, etc., are not good thermal conductors. Coupled with that fact, the heat produced by electronic devices usually gets distributed rapidly. So, this results in the electronic components facing failure and possible damage due to the high temperature.
- But with aluminum substrates, it’s a different story entirely because they effectively solve the thermal dissipation issue.
Thermal Expansion
- Because Aluminum PCBs efficiently provide a solution for the thermal dissipation issue, PCB components’ thermal contraction and expansion issues with various substances get easily improved.
- That way, the electronic components’ reliability, durability, and the entire machines are certain. In short, aluminum substrate PCBs do a great job solving the surface mount technology thermal expansion and contraction issues.
Dimensional Stability
- Aluminum PCBs have higher dimensional stability than the insulating component of the regular PCB. So, when it gets heated from 30 °C to 140 ~ 150 °C, its dimensional change remains at 2.5 ~ 3.0%. But the dimensional stability tends to dwindle when heated at a higher temperature.
Other Performance
- The aluminum PCB comes with a shielding effect that helps protect the circuit board. Also, it helps to boost heat resistance and cut the cost of production and labor.
THE BUILD LAYOUT OF ALUMINUM PCB
The structure or assemblage of aluminum PCBs comprises of four layers, namely:
Copper Foil Layer
- This layer is usually thicker than the regular CCLs, which measures about 1 oz – 10oz. Also, a thicker copper layer equally means it possesses a bigger current carrying capacity.
Dielectric Layer
- The dielectric layer It has a part with thermal conductivity, and it’s usually about 50 μm to 200μm in thickness. Plus, the layer has a relatively low thermal resistance, and it’s ideal for its applications.
Aluminum Base
- This aluminum base is the third layer—made from an aluminum substrate. So, its thermal conductivity level is very high.
Aluminum Base Membrane Layer
- This layer is usually selective—compared to other layers. It helps to protect the aluminum surface from unnecessary scratching and etching. However, it comes in two types; one is an anti-high temperature usually about 250 degrees. And the other is lower than 120 degrees.
THE TYPES OF ALUMINUM PCBS
There are four major types of aluminum PCBs, which includes:

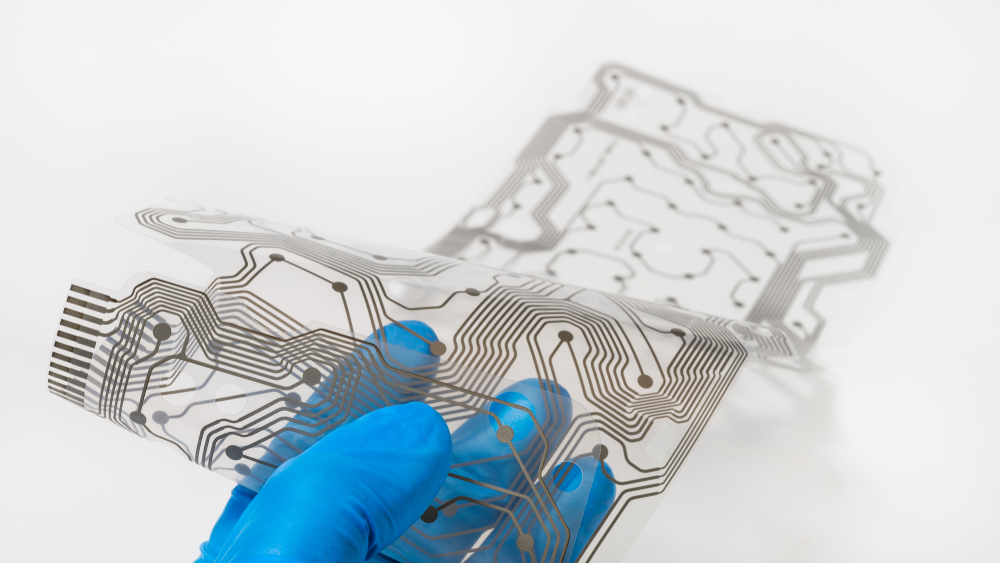

Flexible Aluminum PCBs
Nowadays, most engineers use flexible aluminum PCBs. And it’s because it has one of the most advanced developments for insulated metal substrates. Also, the flexible aluminum PCBs deliver top-notch flexibility, electrical insulation, and thermal conductivity. These PCBs have a solid bending capacity. However, you can’t use them for applications that always require frequent bending.
Through-hole Aluminum PCBs
These through-hole aluminum PCBs are most suitable for electric insulation, and they pass metal clearances easily. The through-hole aluminum PCBs have been pre-drilled and back-filled with a dielectric component.

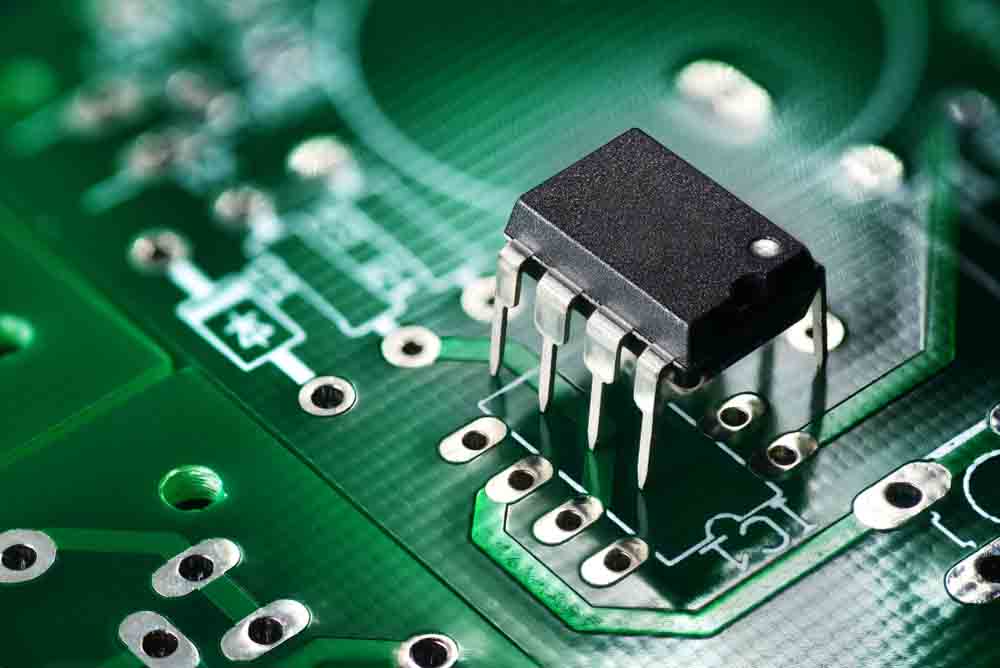

Multilayer Aluminum PCBs
The multilayer aluminum PCBs make up multilayers of dielectric materials that have thermal conductive characteristics.
Therefore, these aluminum PCBs are great heat dissipation agents designed for sophisticated solutions.

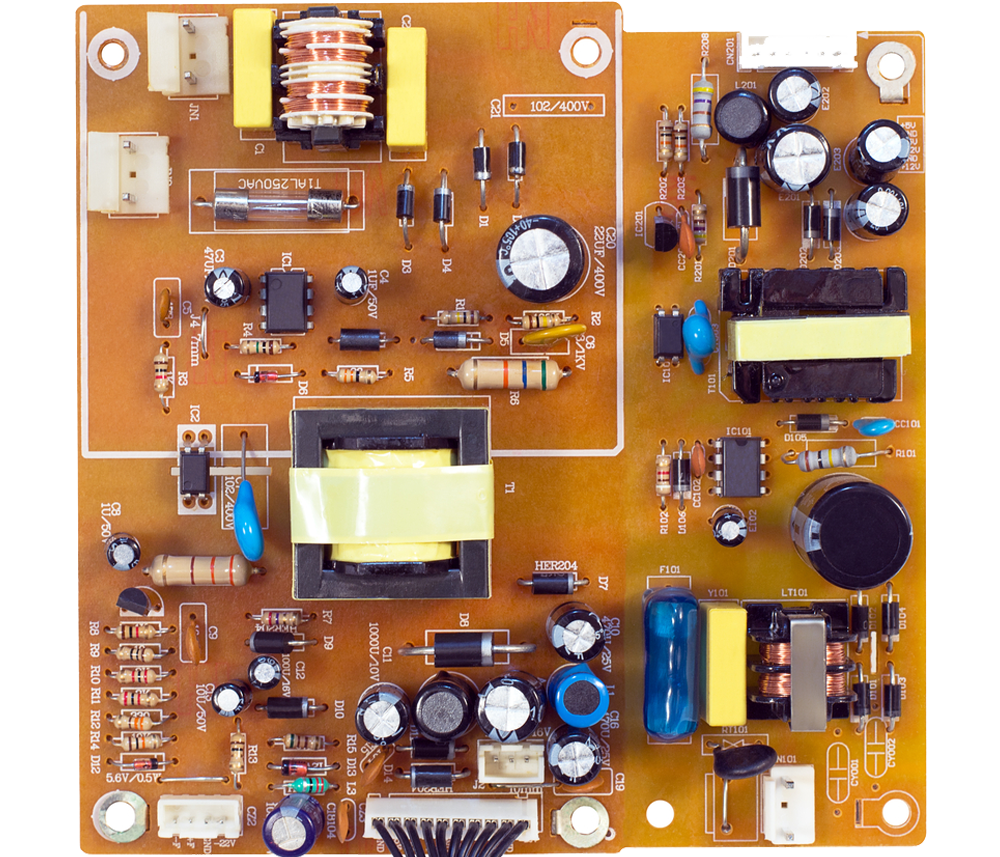

Hybrid Aluminum PCBs
By thermally fusing an aluminum base material to a processed non-thermal material, you’ll get Hybrid aluminum PCBs. Normally, you can use thermal dielectric material to fuse two- or four-layer FR-4 boards to an aluminum base. In the end, the hybrid PCBs come with a heat-shield, increased sturdiness, and heat dissipation agent.
WHAT IS THE PRODUCTION PROCESS OF ALUMINUM PCBS?
The production process of aluminum PCBs involves a thin dielectric layer that’s an electric insulator. But this insulator gets laminated between the metal base and copper foil.
Then, the copper foil gets etched into a PCB pattern, and the metal base extracts heat.
WHY ARE ALUMINUM PCBS BENEFICIAL?
Environmentally Friendly
- One remarkable feature of aluminum is its recyclable nature, and it’s non-toxic. Hence, using the metal for production promotes energy conservation thanks to its ease of assembly. So, when PCB suppliers use aluminum, it preserves environmental health.
Light-weight
- Aluminum PCBs are quite durable and lightweight metals. Plus, the metal contributes to the resilience and strength of a PCB. And it doesn’t add extra weight.
Highly Durable
- If you have a product that requires strength and durability, you can count on Aluminum. And it’s because aluminum poses as a sturdy base material. So, it can reduce breakage that may occur during everyday use, production, and handling.
Cost-Effective
- You can find aluminum in different climates. So, it means you can easily mine and refine it. Hence, aluminum is a more cost-effective option compared to other metals. Plus, it also means that manufacturing products with aluminum are less expensive.
Better Heat Transfer
- Your electronics may suffer from severe damage if there are extreme temperatures. And that’s a good reason why it’s ideal to opt for a material that can transfer heat effectively. Aluminum is a great example of metals that help transfer heat away from vital parts. As a result, it reduces the harmful effect that the circuit board may have gotten.
PRODUCTION CHALLENGES OF ALUMINUM PCBS AND ITS RESOLUTIONS
Producing aluminum PCBs comes with few challenges, and they include:
Copper Etching
- Most times, aluminum PCBs come with copper foil, which is usually thicker. So, if the copper foil appears to be more than 3oz, it’s crucial to do a width compensation for the etching.
- If for some reason, the PCB doesn’t follow the demand of design after etching, the trace width will go out of tolerance. So, it’s necessary to design the trace width compensation accurately. Plus, it’s also important to control the etching process during production.
Solder Mask Printing
- The difficulty of solder mask printing of aluminum PCB usually comes up because of the thick copper foil. This problem occurs because of the thickness of the trace copper. Hence, the trace copper thickness also causes image etching—which causes a large difference between the baseboard and trace surface.
- When this happens, it makes solder mask printing difficult. So, it’s crucial to use the two-time solder mask printing. Also, it’s vital to use quality solder mask oil during the process. Or you can solder the mask after you do a resin filling first.
Mechanical Manufacturing
- During mechanical manufacturing, you could encounter processes like molding and v-scoring, mechanical drilling, etc. These processes are usually on internal via . As a result, it causes a reduction in electrical strength.
- So, it’s best to use the professional milling cutter and electric milling for low-volume products. Plus, it’s ideal for adjusting the drilling parameter—to avoid the generation of burr. Also, it will aid your mechanical manufacturing.
THE PRODUCTION CAPABILITIES OF
XSHPCB
Here are XSHPCB’s Aluminum core manufacturing capabilities summarized in the table below:
Features
Capabilities
Material:
1-32 layers
Lead Time
FR4 covering, aluminum core, copper core
Surface finishing:
ENEPIG plating, immersion gold, immersion silver, hard gold, OSP
Testing:
A.O.I testing and Fly Probe Testing
Thermal conductivity:
2.0 W/(m*k), 1.0W/(m*k)
Board thickness:
0.4-3.2mm
Silkscreen:
Black, white
Build time:
Three days
Solder mask:
Black, matte green, green, yellow, red, white, purple, matte black
Base material:
Rogers, flex, aluminum, flex-rigid, FR4, etc.
Via process:
Vias not covered, tenting vias, plugged vias
Lead time:
2-3 days
Min. hole size:
0.8mm
Finish copper:
1-4oz
Min. spacing:
4mil
WHY SHOULD YOU CHOOSE US AS YOUR ALUMINUM PCB MANUFACTURER?
XSHPCB has been in the business of producing high-quality aluminum PCBs for years. So, you can count on our experience to deliver top-notch custom-designed aluminum PCBs that will meet all your requirements. We can also handle your orders effectively at an unbeatable price on the market. Feel free to contact us for a free online quote, and we can get the ball rolling.
